High quality

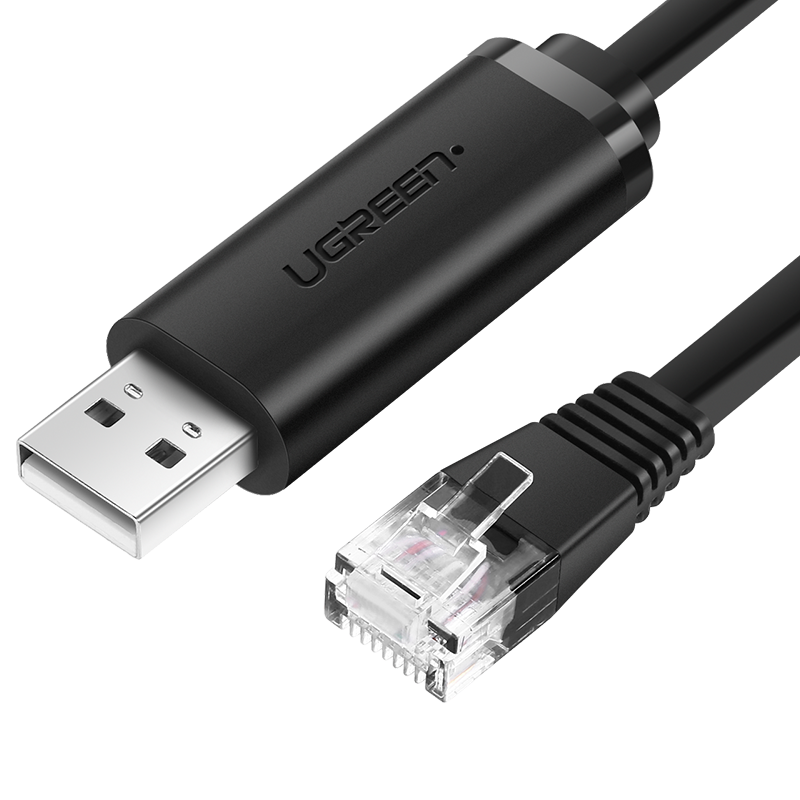

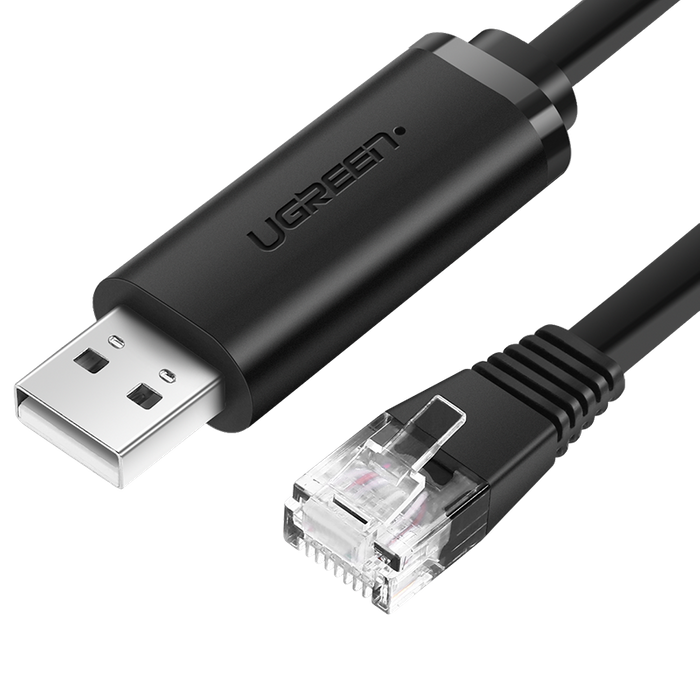

Cable 2.0 to RJ45 with integrated FTDI can perfectly replace unwieldy RS232 Adapter (DB-25 / DB-9). The UGREEN product is ideal for connecting multiple devices, it can also be easily connected to a computer. Nickel-plated USB connector prevents signal delays and has antioxidant properties. This flat Cable is also easy to store and does not irritate annoying tangles.
High versatility
The CM204 Cable is fully compatible with 32 and 64 bit operating systems such as Windows, Mac OS and Linux. It also supports Plug and play in Windows 8/10 and Microsoft's (HCL) certified Mac OS. The product is also distinguished by a wide range of applications with devices such as LAN controllers, routers, switches, console ports from Cisco, Ubiquiti, Juniper, Fortigate, Mikrotik, Tp-Link, Huawei, HP ProCurce, etc.
A stable connection
Built-in FTDI chip, offers a stable connection and wide compatibility with numerous devices. On the other hand, ESD protects the device against electrostatic discharge from the RJ-45 DTE Pinouts RTS (1), DTR (2), TXD (3), GND (4), GND (5), RXD (6), DSR (7) pinouts, CTS (8). It all adds up to the exceptional comfort and safety of using this practical cable.
Specification
| Producer | UGREEN |
|---|---|
| name | UGREEN USB is RJ45 Console Cable 1.5M |
| Model | CM204, RS232 |
| Transmission speed | 75-115200bit / s |
| Connector | USB, Ethernet RJ45 |
| Material | PVC |
| Length | 1.5 m |
| Color | Black |
